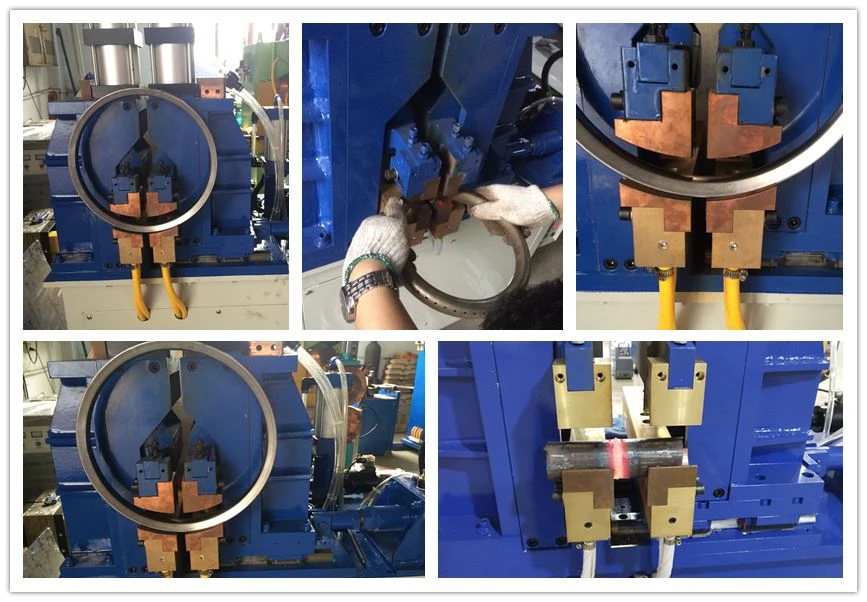

Wheel Rim Butt Vuam Tshuab
Log rim taub qab vuam tshuab yog ib hom kev tiv thaiv taub qab vuam tshuab, nws muaj ob hom: AC flash taub qab vuam tshuab thiab nruab nrab zaus DC inverter flash taub qab vuam tshuab thiab lwm yam.
Hauj lwm lawm
Kev piav qhia
Log rim taub qab vuam tshuab yog ib hom kev tiv thaiv taub qab vuam tshuab, nws muaj ob hom: AC flash taub qab vuam tshuab thiab nruab nrab zaus DC inverter flash taub qab vuam tshuab thiab lwm yam.
Lub ntsiab nta
1.Cov txheej txheem pob tw pib thaum ob lub workpieces yuav tsum tau welded uas yog clamped los ntawm vuam jams tseem tsis tau ntsib ib leeg.
2. Thaum lub sij hawm tom qab, txav cov vuam puab tsaig ua ke maj mam, cov vuam tam sim no ceev yuav nce, ces cov khoom hlau nyob rau hauv qhov sib txawv ntawm lub puab tsaig yuav molten, tib lub sij hawm ib da dej ntawm sparks kuj raug emitted.
3.Raws li qhov chaw hla ntu hauv qhov vuam kub heev, cov lus tsa suab nrawm nrawm.
4.Qhov flashing kuj ua rau cov chaw welded ua ke tag nrho.
Main Technical Parameters
Qauv | Rated zog | Rated Voltage | Rated Zaus | Max luv tam sim no | Rated Duty Cycle | Max Clamping Force | Max Upsetting Force | Yuav tsum muaj dej txias | Qhov hnyav nruab nrab | Qhov Loj L * W * H (CM) |
UN -50 | 50 KVA ua | 380V | 50/60Hz | 19000A | 50% | 4000N | 2000N | 150L/H | 350 Kg | 100*90*150 |
UN -75 | 75 kVA ua | 380V | 50/60Hz | 24000A | 50% | 6500N | 3000N | 150L/H | 450 Kg | 100*90*150 |
UN -100 | 100 kVA | 380V | 50/60Hz | 28000A | 50% | 6500N | 3000N | 150L/H | 550 Kg | 100*90*150 |
UN -150 | 150 KVA UAS | 380V | 50/60Hz | 32000A | 50% | 8500N | 4000N | 300L/H | 1200 Kg | 140*100*170 |
UN -200 | 200 KVA ua | 380V | 50/60Hz | 37000A | 50% | 8500N | 4000N | 300L/H | 1400 Kg | 140*100*170 |
UN -250 | 250KVA ua | 380V | 50/60Hz | 45000A | 50% | 12000N | 6000N | 600L/H | 1600 Kg | 180*120*190 |
UN -300 | 300 KVA ua | 380V | 50/60Hz | 52000A | 50% | 12000N | 6000N | 600L/H | 1800 Kg | 180*120*190 |
UN -600 | 600 KVA ua | 380V | 50/60Hz | 104000A | 50% | 15000N | 8000N | 700L/H | 3200 KG | 280*150*220 |
UN -800 | 800 KVA ua | 380V | 50/60Hz | 112000A | 50% | 15000N | 8000N | 700L/H | 3900 KWG | 330*180*220 |
Daim ntawv thov
1.Ntau yam hlau hlau thiab steel sawb, siv steel bar thiab rebar;
2.Widely siv rau kev tsim kho, kev nthuav qhia, choj, steel hlau kos duab cog, cement prefabricated Hoobkas, cov khoom hlau thiab lwm yam. Tshwj xeeb tshaj yog tsim rau siv nyob rau hauv kev tsim kho teb thiab lub teb chaws sab.
Guangzhou Dtragon Vuam Co., Txwv muaj Rim Ua Kab
Daim ntawv pov thawj
Lub log rim taub qab vuam tshuab tau txais CE Certification ua raws li European Standard EN1004, CCC daim ntawv pov thawj rau Suav cov qauv zoo. peb lub Hoobkas kuj tau ua tiav daim ntawv pov thawj nrog ISO 9001 International Quality Management Standard los ua pov thawj thiab lav qhov projection vuam tshuab muab kev nyab xeeb zoo & kev ua haujlwm ruaj khov.
Ntim thiab xa khoom
Peb lub log rim taub qab vuam tshuab yuav raug tshuaj xyuas nruj me ntsis ua ntej ntim thiab xa tawm kom paub tseeb tias lawv tuaj yeem txaus siab rau koj, thiab peb lub thawv ntim khoom muaj zog heev.
Peb muab cov qauv vuam kev pabcuam thiab kev pabcuam zoo tom qab muag.
Kev vam meej
1. Guangzhou Dragon Vuam Co. Ltd yog ib lub vuam tshuab chaw tsim khoom hauv Suav teb.
2. Cov kws tshaj lij kev ua haujlwm muaj zog thiab pab pawg tsim qauv xyuas kom tsim cov tshuab vuam nrog cov khoom zoo tshaj plaws.
3. Kev nplua nuj ntawm kev tsim khoom nrog ntau tshaj 20 xyoo kev tsim khoom.
4. Peb muab kev pabcuam OEM, ODM, koj tuaj yeem qhia rau peb paub txhua yam uas yuav tsum tau ua, peb pab neeg tsim thiab pab pawg yuav tsim lawv raws li koj xav tau.
5. Peb muab cov qauv vuam kev pabcuam thiab kev pabcuam zoo tom qab muag.
Daim ntawv tso cai thiab tsim nyog
FAQ
Q1: Koj lub Hoobkas tsim dab tsi?
A: Peb tsim thiab xa tawm txhua yam tsis siv neeg vuam tshuab thiab lub log rim taub qab vuam tshuab. Peb kuj tuaj yeem tsim thiab tsim cov tshuab vuam raws li koj xav tau.
Q2: Ua li cas txog koj tus qauv xa khoom hnub?
A: Feem ntau 20-50 hnub. Peb lub tuam txhab muab cov khoom xa tuaj raws sijhawm
Q3: Koj puas muag vuam electrodes?
A: Yog lawm, koj tuaj yeem yuav vuam electrodes los ntawm peb lub Hoobkas lossis hauv koj lub khw hauv zos.
Q4: Koj puas muaj daim ntawv pov thawj CE?
A: Yog, peb muaj.
Q5: Koj puas tuaj yeem xa cov tshuab los ntawm koj lub Hoobkas?
A: Yog, peb tuaj yeem ua tau.
Q6: Koj lub Hoobkas nyob qhov twg?
A: Peb lub Hoobkas nyob hauv Guangzhou City, Guangdong Province, Suav.
Peb yuav muab cov kev pab cuam tom qab muag zoo tib yam li qhov kev pabcuam ua ntej muag, ib qho ntawm koj cov lus nug, peb yuav teb rau hauv 12 teev.
